Deployment & Authorization

Nebraska uses either a noop authentication or OIDC to authenticate and authorize users.

Preparing the database for Nebraska

Nebraska uses the PostgreSQL database, and expects the used database to be set to the UTC timezone.

For a quick setup of PostgreSQL for Nebraska’s development, you can use the postgres container as follows:

Start Postgres:
- docker run --rm -d --name nebraska-postgres-dev -p 5432:5432 -e POSTGRES_PASSWORD=nebraska postgres
Create the database for Nebraska (by default it is nebraska):
- psql postgres://postgres:nebraska@localhost:5432/postgres -c 'create database nebraska;'
Set the timezone to Nebraska’s database:
- psql postgres://postgres:nebraska@localhost:5432/nebraska -c 'set timezone = "utc";'

Tuning PostgreSQL auto-vacuum

Autovacuum and autoanalyze in PostgreSQL are effectively disabled when tables are very large. This is because the default is 20% of a table (and 10% of a table for analyze).

We advise to change the mentioned configuration in order to have autovacuum and autoanalyse run when about 5,000 rows change. This value was chosen based on getting the autovacuum to run every day, as it’s large enough to not cause the autovac to run all the time, but about the right size to make a difference for query statistics and reducing table bloat.

You can verify (and eventually use) this SQL file where we have set up these changes.

The analyze threshold was chosen at half the autovacuum threshold because the defaults are set at half.

Deploying Nebraska for testing on local computer (noop authentication)

Go to the nebraska project directory and run make
Start the database (see the section above if you need a quick setup).
Start the Nebraska backend:
- nebraska -auth-mode noop -http-static-dir $PWD/frontend/build -http-log
In the browser, access http://localhost:8000

Deploying Nebraska with OIDC authentication mode

Go to the nebraska project directory and run make
Start the database (see the section above if you need a quick setup).
Setup OIDC provider (Keycloak Recommended).
Start the Nebraska backend:
- nebraska --auth-mode oidc --oidc-admin-roles nebraska_admin --oidc-viewer-roles nebraska_member --oidc-client-id nebraska --oidc-issuer-url http://localhost:8080/auth/realms/master --oidc-client-secret <Your_Client_Secret>
Note: If roles array in the token is not in roles key, one can specify a custom JSON path using the oidc-roles-path flag.
In the browser, access http://localhost:8000

Preparing Keycloak as an OIDC provider for Nebraska

Run Keycloak using docker:
- docker run -p 8080:8080 -e KEYCLOAK_USER=admin -e KEYCLOAK_PASSWORD=admin -d quay.io/keycloak/keycloak:13.0.1

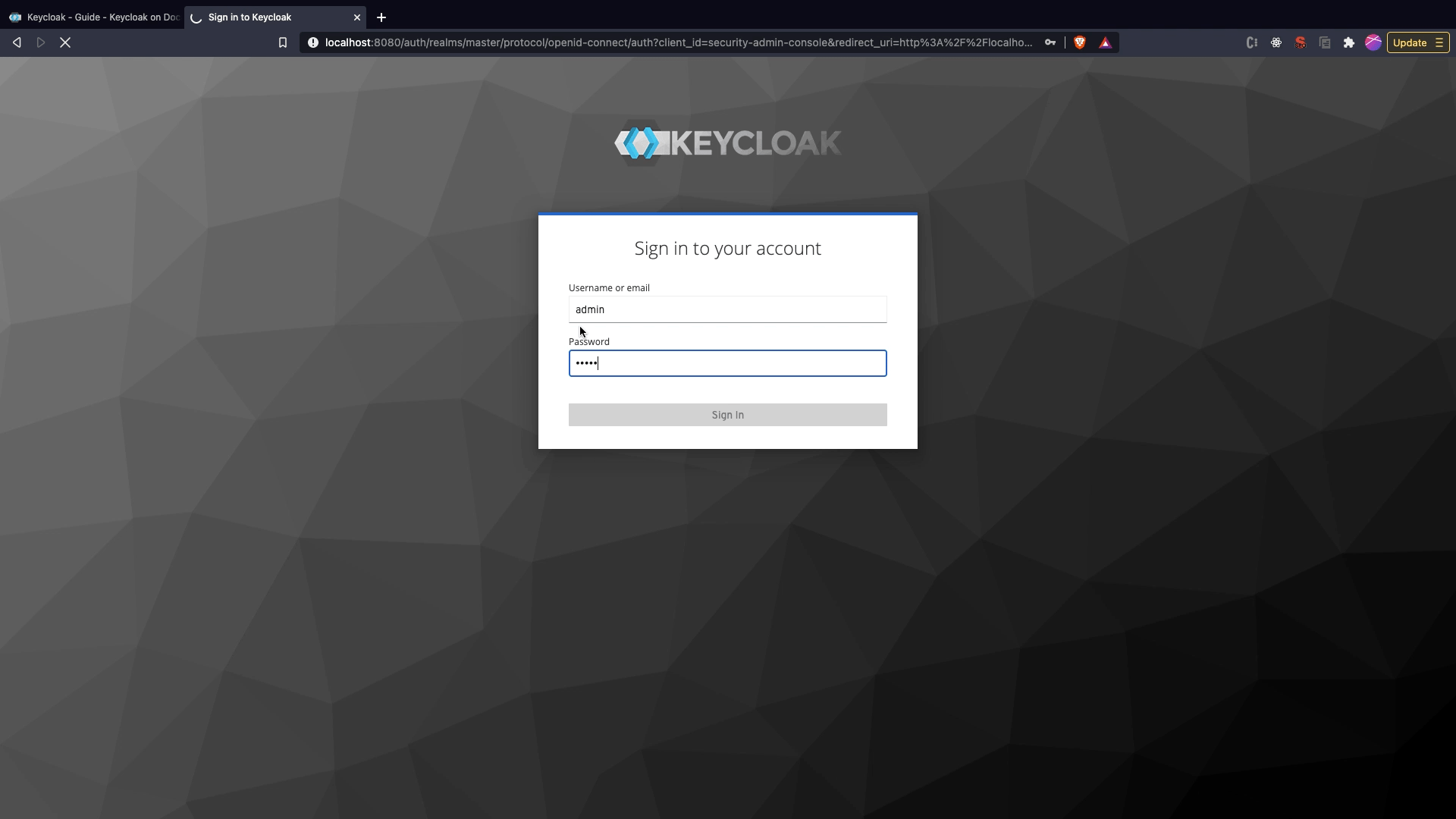

Open http://localhost:8080 in your browser to access keycloak UI and login with the username admin and password as admin.

Creating Roles

Member Role

Click on Roles menu option and select Add Role.
Provide a name for the member role, here we will use nebraska_member.
Click Save.

Admin Role

Click on Roles menu option and select Add Role.
Provide a name for the admin role, here we will use nebraska_admin.
Click Save.
After the admin role is created enable composite role to ON. In the Composite Roles section select the member role, In our case it is nebraska_member and click Add Selected.

Now the member and admin roles are created, the admin role is a composite role which comprises of member role.

Creating a client

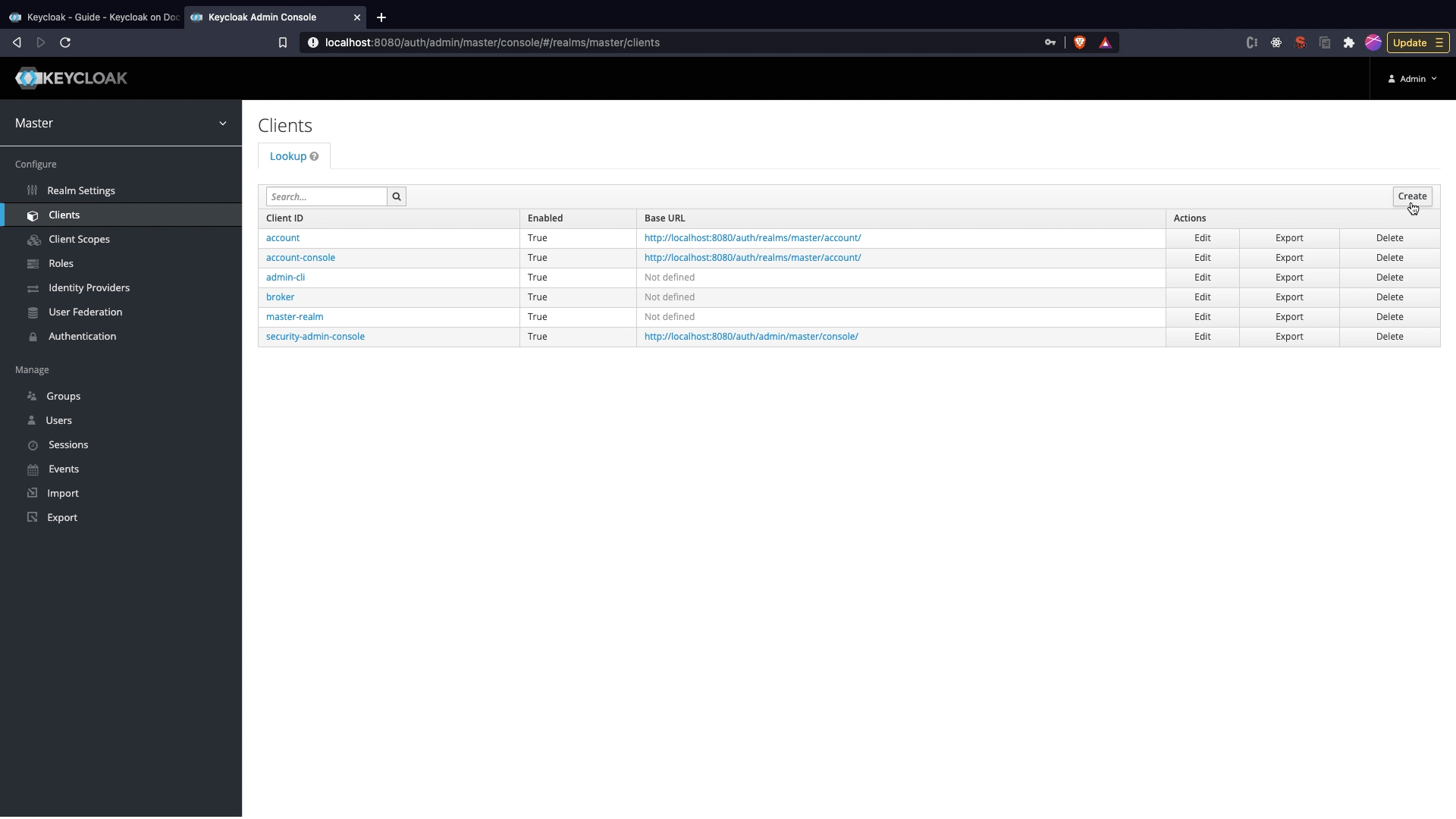

Click on Clients menu option and click Create.
Set the client name as nebraska and click Save.
Change the Access Type to Confidential
Set Valid Redirect URIs to http://localhost:8000/login/cb.

Adding roles scope to token

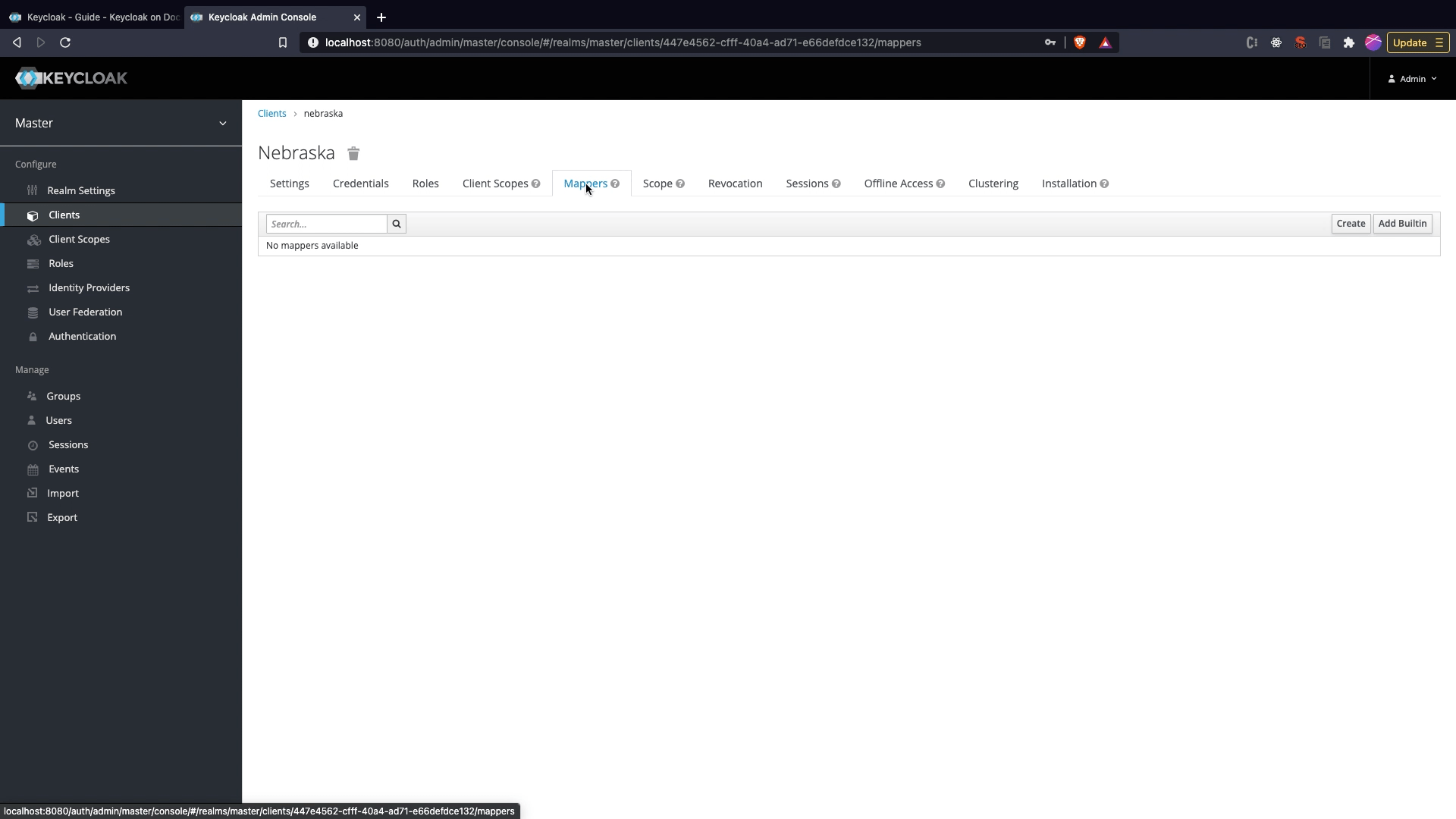

Click on Mappers tab in Client Edit View. Click on Create.
Set the name as roles, Select the Mapper Type as User Realm Role, Token Claim Name as roles and Select Claim JSON Type as String.
Click Save

Attaching Roles to User

Click on Users menu option and click View all users.
Once the user list appears select the user and click on Edit.
Go to Role Mapping tab and select nebraska_admin role and click on add selected to attach role to user. If you want to provide only member access access select the member role.

Preparing Auth0 as an OIDC provider for Nebraska

Create and configure new application

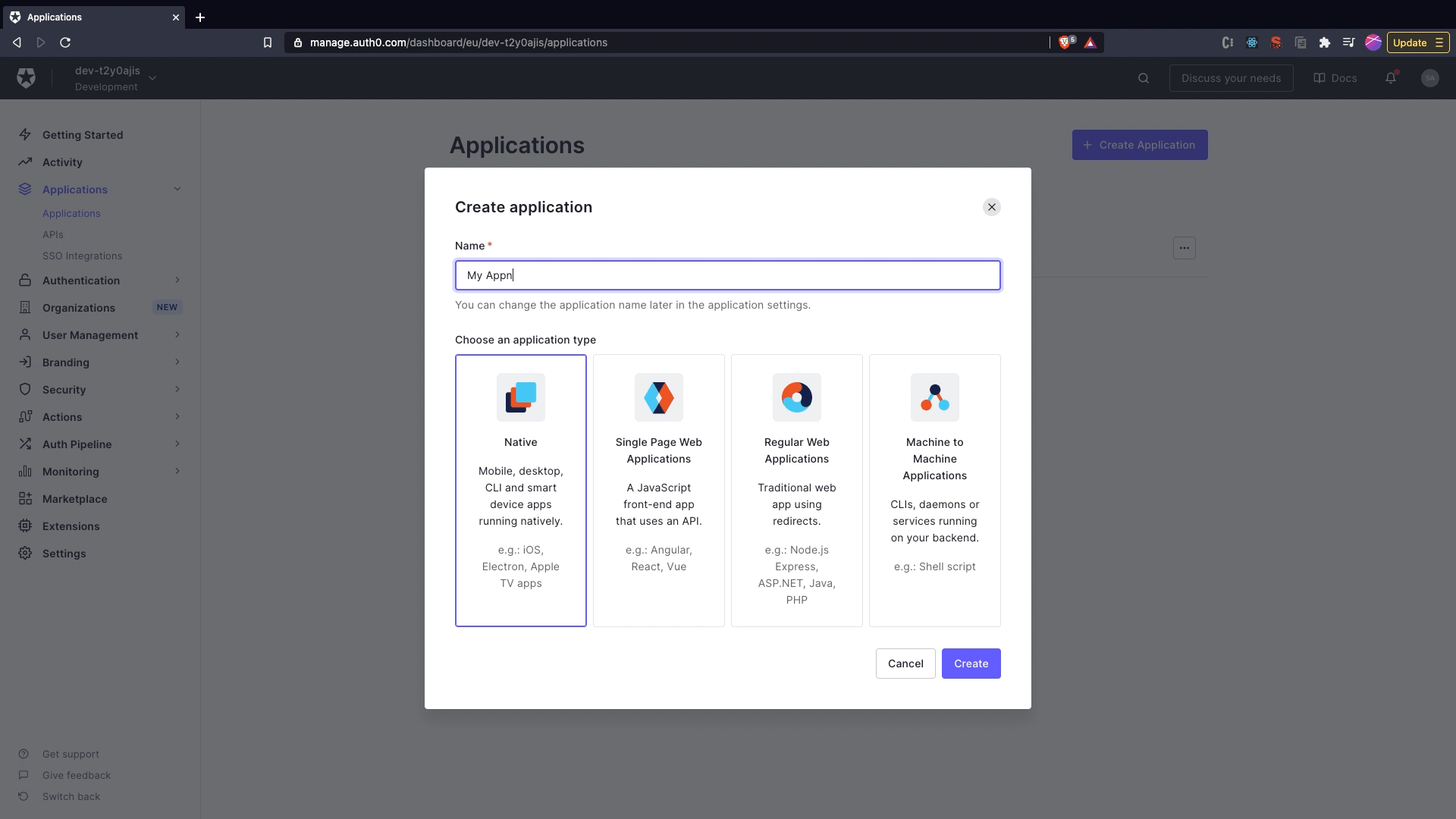

Click on Create Application.
Provide the name as nebraska, select Regular Web Application.
Click Create
Click on the settings tab.
Under Application URIs section provide the Allowed Callback URLs as http://localhost:8000/login/cb.
Click on Save Changes

Adding roles scope to token

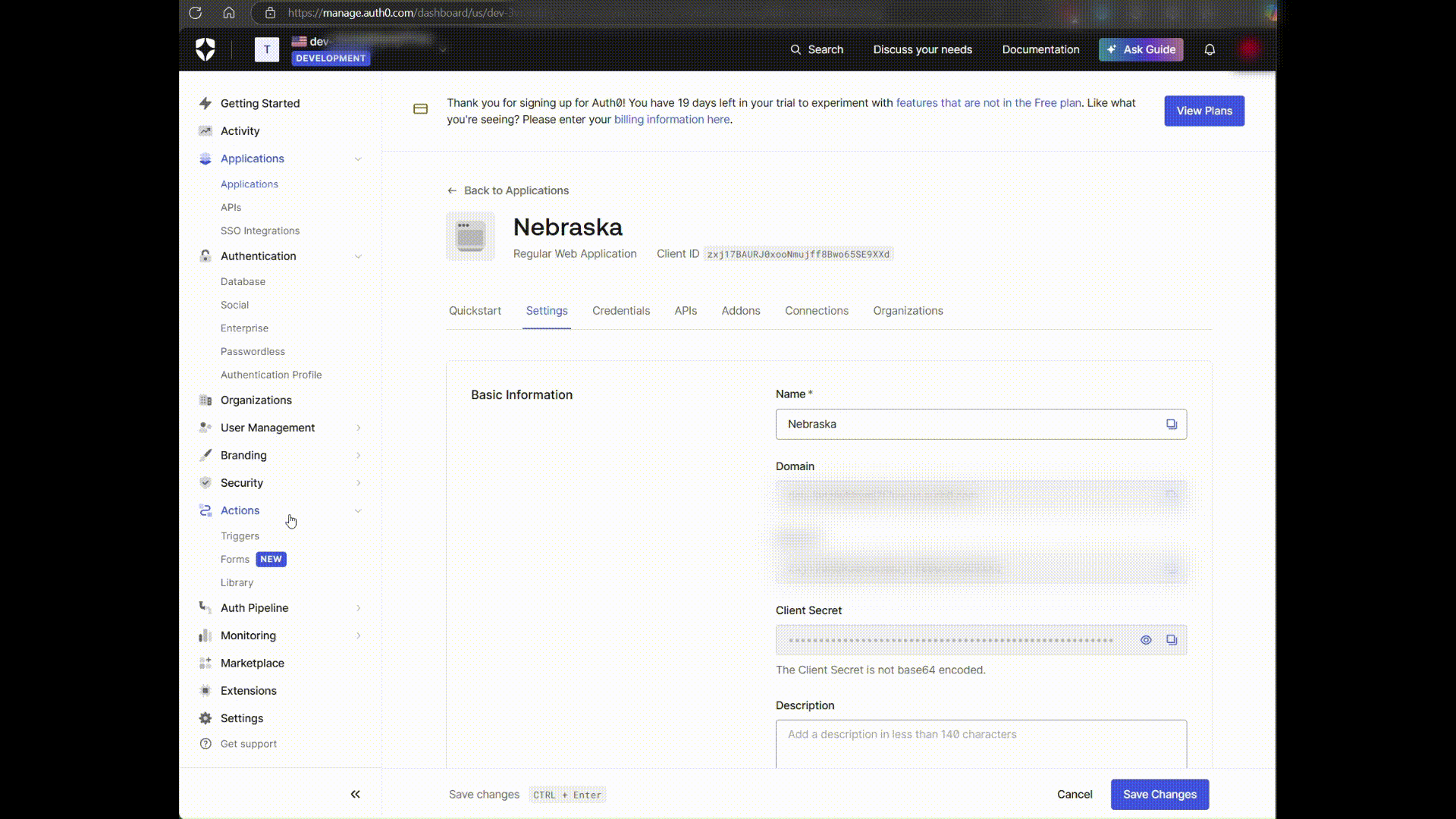

Click on Rules sub-menu from Auth Pipeline menu option.
Click on Empty Rule option.
Provide the name as roles.
Paste the following snippet in Script text box.

function (user, context, callback) {
  const namespace = 'http://kinvolk.io';
  const assignedRoles = (context.authorization || {}).roles;

  let idTokenClaims = context.idToken || {};
  let accessTokenClaims = context.accessToken || {};

  idTokenClaims[`${namespace}/roles`] = assignedRoles;
  accessTokenClaims[`${namespace}/roles`] = assignedRoles;

  context.idToken = idTokenClaims;
  context.accessToken = accessTokenClaims;
  callback(null, user, context);
}

Now the rule to add the roles to the token is setup, the roles will be available in the key http://kinvolk.io/roles.

Note: The oidc-roles-path argument accepts a JSONPath to fetch roles from the token, in this case set the value to http://kinvolk\.io/roles.

Preparing Dex with github connector as an OIDC provider for Nebraska

Setting up a Github App to be used as a connector for Dex

Create a new organization in Github.
Now you need a Github app, go to https://github.com/organizations/<ORG>/settings/apps/new and fill the following fields:
- GitHub App name - just put some fancy name.
- Homepage URL - http://localhost:8000
- User authorization callback URL - http://0.0.0.0:5556/dex/callback
- Permissions - Access: Read-only to Organization members
- User permissions - none needed
- Subscribe to events - tick Membership, Organization and Team
- Where can this GitHub App be installed? - Only on this account
Press Create GitHub App button
Next thing you’ll get is OAuth credentials at the bottom of the page of the app you just created, we will need both Client ID and Client secret
You also need to install the app you just created
- Go to https://github.com/organizations/<ORG>/settings/apps
- Click Edit button for your new app
- Choose Install App on the left of the page and perform the installation

Creating Github Teams

Create two teams in your organization with the following names admin and viewer.
Add the admin users to both admin and viewer team. Add the non-admin users to viewer team.

Configuring and Running Dex IDP

Create a configuration for Dex based on the example.

example.yaml

issuer: http://0.0.0.0:5556/dex

storage:
  type: sqlite3
  config:
    file: /var/dex/dex.db

web:
  http: 0.0.0.0:5556

staticClients:
  - id: nebraska
    redirectURIs:
      - 'http://localhost:8000/login/cb'
    name: 'nebraska'
    secret: <ClientSecret> // Random Hash

connectors:
- type: github
  id: github
  name: GitHub
  config:
    clientID: <Client ID>
    clientSecret: <Client Secret>
    redirectURI: http://0.0.0.0:5556/dex/callback
    loadAllGroups: true
    teamNameField: slug
    useLoginAsID: true

enablePasswordDB: true

Run Dex using docker with the example configuration.

docker run -p 5556:5556 -v ${PWD}/example.yaml:/etc/dex/example.yaml -v ${PWD}/dex.db:/var/dex/dex.db ghcr.io/dexidp/dex:v2.28.1 dex serve /etc/dex/example.yaml

Running nebraska

go run ./cmd/nebraska –auth-mode oidc –oidc-admin-roles :admin –oidc-viewer-roles :viewer –oidc-client-id nebraska –oidc-issuer-url http://127.0.0.1:5556/dex –oidc-client-secret –oidc-roles-path groups –oidc-scopes groups,openid,profile

Deploying on Kubernetes using the Helm Chart

We maintain a Helm Chart for deploying a Nebraska instance to Kubernetes. The Helm Chart offers flexible configuration options such as:

Deploy a single-replica PostgreSQL database together with Nebraska. We use the container image and also the Helm Chart (as a subchart) from Bitnami
Enabling / disabling, and configuring persistence for both Nebraska and PostgreSQL (persistence is disabled by default)
Common deployment parameters (exposing through Ingress, replica count, etc.)
All Nebraska application configuration

For the complete list of all available customization options, please read the Helm Chart README .

To install the Helm Chart using the default configuration (noop authentication), you can execute:

$ helm repo add nebraska https://flatcar.github.io/nebraska
$ helm install my-nebraska nebraska/nebraska

You probably need to customize the installation, then use a Helm values file. Eg.:

# nebraska-values.yaml
config:
  app:
    title: Nebraska

  auth:
    mode: github
    github:
      clientID: <your clientID obtained during GitHub App registration>
      clientSecret: <your clientSecret obtained during GitHub App registration>
      sessionAuthKey: <64 random hexadecimal characters>
      sessionCryptKey: <32 random hexadecimal characters>
      webhookSecret: <random Secret used in GitHub App registration>

ingress:
  annotations:
    kubernetes.io/ingress.class: <your ingress class>
  hosts:
    - nebraska.example.com

postgresql:
  postgresqlPassword: <A secure password>
  persistence:
    enabled: true
    storageClass: <A block storage-class>
    accessModes:
      - ReadWriteOnce
    size: 1Gi

Then execute:

$ helm install my-nebraska nebraska/nebraska --values nebraska-values.yaml

Troubleshooting:

I’m getting a blank page!
- You likely visited nebraska frontend website before, so browser likely has cached the index.html page, so it won’t get it from Nebraska, but instead start asking for some CSS and javascript stuff outright, which it won’t get. That results in a blank page. Force the browser to get index.html from Nebraska by either doing a force refresh (ctrl+f5 on firefox), or by cleaning the cache for localhost (or the server where the Nebraska instance is deployed). We will try to improve this in the future.
